Basic Features

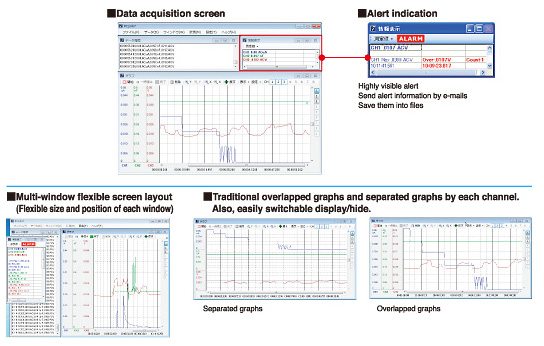

The PC Link system is the software dedicated to a PC for retrieving data outputted from a SANWA digital multimeter (PC series). The operation screen displays graphs in real time to allow you to check changes in measured values (voltage, current, etc.) with ease. Measured data can be saved on a CSV file, so it is easily processed on Excel. The ease of use in a variety of applications from data retrieval, processing and analysis results in its extensive acceptance for business, education and personal use.




Applicable Model
PC7000, PC720M, PC710, PC700, PC773, PC20, PC20TK



· Automatically detects a port connected with a digital multimeter.
· No additional driver installation required with Windows standard USB drivers.
· The retrieval interval can be set by seconds. The shortest reading interval of 0.2 – 0.3 seconds depending on the digital multimeter measuring function.
· Allows setting for vertical/horizontal zoom, reading at the cursor position, and Y axis split while retrieving data.
· Allows automatic retrieval by schedule setting.
· Allows data saving into CSV files and sending e-mails of alert information with alarm setting.
· Allows data saving into CSV files with the date and time appended.
· Multi-window, separated graphs by each channel
· Allows automatic e-mail of measurement data.
· Allows limited operations depending on the user with usage restriction function.
· Allows conditional recording by event function.

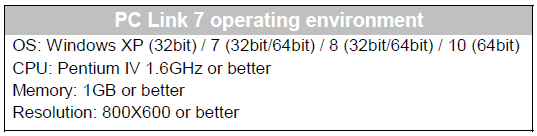

Software	Version	Support OS	Applicable Model
PC Link7	1.00, 1.10, 1.11	Windows XP Windows7(32bit)	PC773, PC720M, PC700, PC710
	1.20,1.30	Windows XP Windows7(32bit/64bit)	PC773, PC720M, PC700, PC710, PC7000, PC20, PC20TK
	1.31, 1.32, 1.33, 1.34, 1.35	Windows XP Windows7(32bit/64bit) Windows8(32bit/64bit) Windows10(64bit)	PC773, PC720M, PC700, PC710, PC7000, PC20, PC20TK

All of above versions DO NOT work with Windows Vista.
.NET Framework 3.5 included with Windows10 must be turned on before you
install PC Link7 on Windows10.
To turn .NET Framework 3.5 on : Click Control Panel, click Programs,
click Turn Windows features on or off, and then select its check box.


· Applicable cable type

Models	Cable
	USB type	Serial type
PC20, PC20TK	KB-USB20	-
PC773	KB-USB773	-
PC720M, PC700, PC710, PC7000	KB-USB7	-
